Power: Upto 2 kW
Material: Mild Steel, Stainless steel, Galvanized Iron, Others.

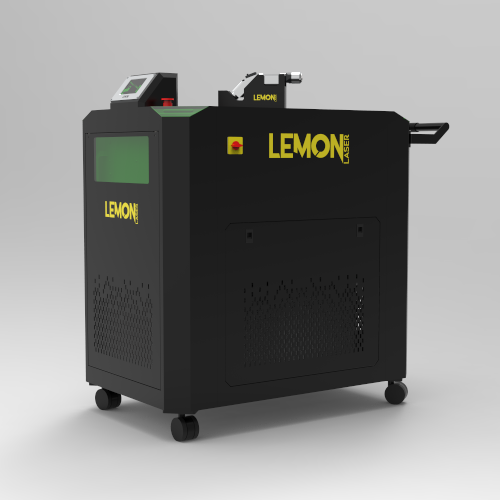

The LEMON handheld laser welding system combines the fundamental qualities of an ultra-portable device with uncompromising performance. Designed with advanced and the latest features, the product’s overall performance has increased resulting in an extremely productive and powerful system. With exceptional welding strength, the System is suitable for welding both large and small parts, even complex ones.
| Specification | Units | Air Cooled Handheld Laser Welding | Water Cooled Handheld Laser Welding | ||
|---|---|---|---|---|---|
| Power | Watts | 2000 | 1500 | 2000 | |
| Wave length | nm | 1070 ± 10 | 1080 ± 10 | ||
| Output Power Tunability | % | 10 - 100 | 10 - 100 | ||
| Modulation Frequency | 0 - 5000 Hz | 0 - 5000 Hz | |||
| Power supply | 230 ± 5% VAC, 3 Ø, 50/60 Hz | 230 ± 5% VAC, 3 Ø, 50/60 Hz | |||
| Overall Size (L × B × H) (Approx) | mm | 650 × 300 × 621 | 1300 × 685 × 1200 | ||
| Weight (Approx) | kg | 70 | 150 | ||
| Maximum Power Consumption | kW | 6.5 | 5.5 | ||
| Welding Nozzle Wire Length | mtr | 10 | 10 mtr | ||
| Operation Temperature | °C | 10 to 50 | 10 to 50 | ||
🚀 Flawless, high-strength welds
🚀 Distortion-free
🚀 3-in-1 Laser Welding Cleaning Cutting Machine
🚀 Long-lasting reliability
🚀 Fast welding speeds
🚀 Minimized heat-affected zones
🚀Portable and powerful
